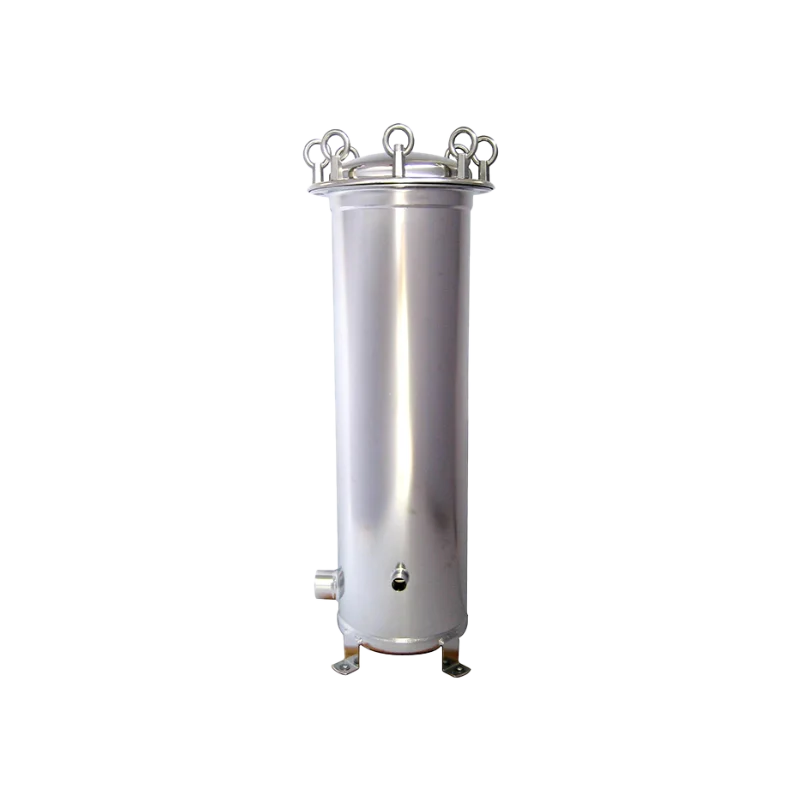

Stainless Steel Cluster Filter
Model: CF
Brand: AQUAPRO
Features:
The cluster design refers to multiple filter elements clustered together within the housing. This design maximizes filtration surface area, allowing for efficient particle removal and improved flow rates. |
Due to their cluster design and larger size, these filters can handle high flow rates and have a larger filtration capacity compared to standard single-cartridge filters. |
Stainless steel cluster filters are suitable for various water sources and applications, including residential, commercial, and industrial settings, providing versatile filtration solutions. |
Aquapro High-Grade Stainless Steel Cluster Filter: Crafted in Taiwan for Excellence
Elevate your water filtration with AQUAPRO’s High-Grade Stainless Steel Cluster Filter, meticulously engineered in Taiwan. Boasting a durable stainless steel build and featuring 5 or 7 precision sediment elements, this filter ensures top-tier performance in capturing impurities. Enjoy water that meets the highest standards of purity, backed by the reliability and reputation of Aquapro. Upgrade your water quality effortlessly with this advanced filtration solution.
Functions:
Working Pressure: | 103~220psi (7~15kg/cm2) |
High Pressure: | Max. 20kg |
Material: | SS304 Or SS316 |
Cartridges Quantity: | 5 or 7 |
Working Temperature: | 1~50 C |
Specifications:
PART NO. | DIMENSION | PIPE SIZE (NPT) | DRAIN(NPT) | CARTRIDGES LOAD | FLOW G/M |
CF05 | 230mm(D)x590mm(H) | 1 1/2" | 3/4" | 10"x5 | 35 |
CF10 | 230mm(D)x890mm(H) | 1 1/2" | 3/4" | 20"x5 | 50 |
CF15 | 230mm(D)x1110mm(H) | 1 1/2" | 3/4" | 30"x5 | 75 |
CF20 | 230mm(D)x1380mm(H) | 1 1/2" | 3/4" | 40"x5 | 110 |
CF28 | 230mm(D)x1380mm(H) | 2" | 3/4" | 40"x7 | 120 |
